Product specifications
KD034WVFID003

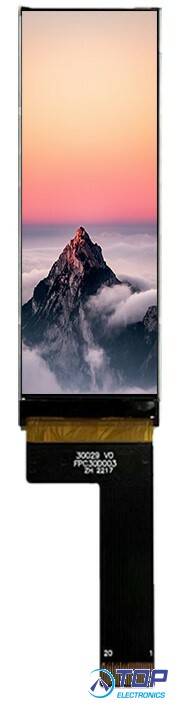

Startek 3.0" IPS Display Bartype
1. Product name: 3.0 inch 2 Lane MIPI interface ST7701 IPS Bartype TFT
2. Part No.: KD030WVFID029
3. Size.: 3.0 inch
4. Compatible part No.: --
5. With touch panel or not: NO
6. Touch type: NO
7. Display type: IPS
8. Display colors: 16.7M
9. Resolution (pixels): 268x800
10. Pixel pitch: 0.09(H)*0.09(V)
11. Viewing direction: Free V.A
12. Driver IC: ST7701
13. Display mode: Transmissive / Normally black
14. Overall size: 26.96*80.08*1.66mm
15. Viewing area: 24.72*72.60mm
16. Active area: 24.12*72.00mm
17. Luminance: 400cd/m²
18. Contrast: 1000∶1
19. Interface type: MIPI
20. Pin NO.: 20
21. Pin pitch: 0.5mm
22. Connecting type: plugging type
23. Input voltage: 3.3V
24. Backlight type and color: LED backlight / white
25. Backlight: 6 LEDs Series VF=16.2V, IF=20mA
26. LED life time: 50000h
27. Operating temperature range: -20℃～+70℃
28. Storage temperature range: -30℃～+80℃
29. Compliant: RoHS
30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
