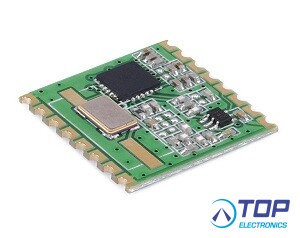

RFM22B-868-D, 20dBm transceiver module, 868MHz, DIP

More information

Stock
In stock
Delivery time
please contact us for more information
Manufacturer / supplier
HopeRF
Datasheet
View datasheet
€ 12.35 excl VAT

Product specifications

RFM22B-868-D

Transceiver module 868MHz with +20dBM output, DIP

HopeRF's RFM22B are highly integrated, low cost, 433MHz wireless ISM transceivers module. The low receive sensitivity(–121dBm) coupled with industry leading +20dBm output power ensures extended range and improved link performance. Built-in antenna diversity and support for frequency hopping can be used to further extend range and enhance performance. Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX/RX FIFOs, automatic packet handling, and preamble detection reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, power-on-reset (POR), and GPIOs further reduce overall system cost and size. The RFM22B's digital receive architecture features a high-performance ADC and DSP based modem which performs demodulation, filtering, and packet handling for increased flexibility and performance. The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC, ETSI. An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market.

- HopeRF Microelectronics product -
