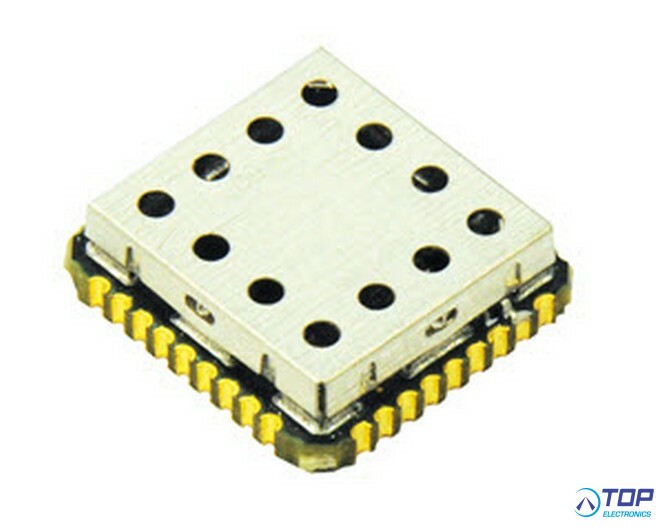

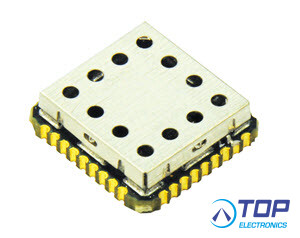

ERF1000 Module, 2.4GHz wireless, ARM Cortex-M0+

More information

Stock
Out of stock
Delivery time
if not in stock: 4 ~ 6 weeks
Part number
ERF1000
Manufacturer / supplier
Summit Electronics
€ 21.90 excl VAT
Contact us Technical support Quotation request
ERF1000.pdf
Quantity
Unit price
From 10 pcs€16.85
From 100 pcs€12.39
From 1000 pcs€7.63

Product specifications

ERF1000
Low power wireless module with ARM Cortex-M0+

Specifications
CPU: ARM Cortex-M0+ CPU running at up to 48MHz

Memory
- 256KB in-system self-programmable flash
- 32KB SRAM

Peripherals
- Three 16-bit timer/counters
- One full-speed (12Mbps) USB 2.0 interface
- USART with full-duplex and single-wire half-duplex configuration
- I2C interface
- SPI interface
- 12-bit, 350ksps analog-to-digital converter
- Two analog comparators

Wireless
- Low power transceiver for 2.4GHz ISM band
- 250kbps Data rate
- -99dBm RX sensitivity
- Up to +4dBm TX output power
- Antenna diversity and TX/RX control
- Hardware security (AES, true random generator)

Power
- 1.8~3.6V Supply voltage
- 2.50μA - Idle mode
- 4.06μA - Standby mode
- 11.8mA - RF receiving mode

Size
- 16mm x 15mm x 4.2mm

Datasheet is available, please contact us fore more information

Related products

ERF1000 - eval kit

Evaluation kit for ERF1000 module

€ 395.41
