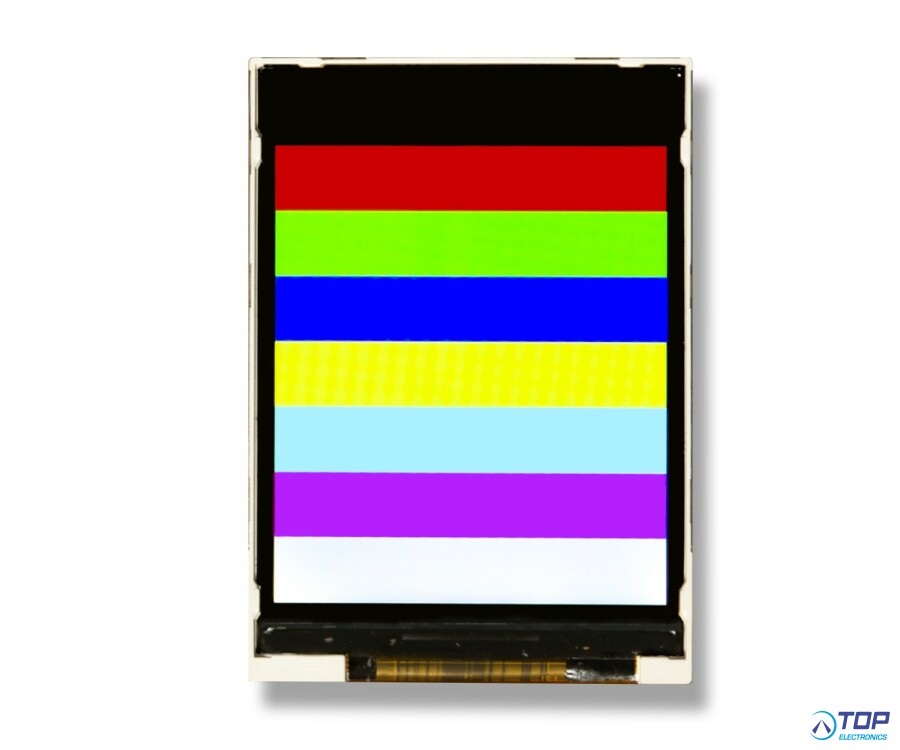

YB-TG240320S28A-N-A0, 2.4" IPS, Serial/Parallel, 550nits

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
YB-TG240320S28A-N-A0
Manufacturer / supplier
Yeebo
Datasheet
View datasheet
Contact us

Product specifications

YB-TG240320S28A-N-A0
Display TFT 2.4", IPS, Ser/Par, 550nits

General Specification
Module Size: 42.0 (W) * 59.0 (H) * 2.1 (T) mm
Module Size(With FPC): 57.5 (W) * 59.0 (H) * 2.1 (T) mm
Display Size(Diagonal): 2.4 inch
Display Format: 240(RGB)*320 Pixels
Active Area: 36.72(W) * 48.96 (H) mm
Pixel Pitch: 0.153 * 0.153 mm
LCD Type: TFT (262K) / Transmissive / Normally Black
View Angle: Free(IPS)
Controller IC: ST7789V
Interface: Serial / Parallel
Brightness: 550 nits
Weight: 10.63g

--- YEEBO product ---
