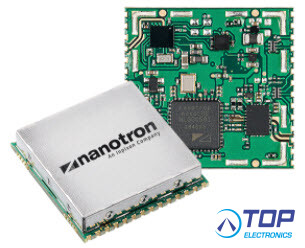

Swarm bee LE V3, 2.4 GHz Chirp radio & sensor module

More information

Stock
4 pcs
Delivery time
please contact us for more information
Part number
Swarm bee LE V3
Manufacturer / supplier
Inpixon & Nanotron Technologies
Datasheet
View datasheet
Specification 1
Frequency range: ISM-band 2.4 GHz, 2.400 - 2.4835
Specification 2
Modulation: Chirp Spread Spectrum (CSS)
Specification 3
Standard Package: 500pcs
€ 74.33 excl VAT
Contact us Technical support Quotation request

Product specifications

swarm bee LE V3 integrates nanotron’s location RF-Chip, nanoLOC, and is complemented with embedded accelerometer and temperature sensors. With low external component requirements, the swarm bee LE V3 is an ideal choice for personnel, equipment and asset tracking products, where in- and outdoor location sensing is critical.

swarm bee LE V3 based tags, when deployed with nanoANQ anchors and our IoT Platform, provide the most comprehensive real-time location system (RTLS) on the market today.

- Engage markets with a small footprint module – suiting wearables, asset tags or cap lamps
- Deliver higher performance applications by extending the range (+4dB RF Pout)
- Cut integration time with the tag ready swarm bee design

The swarm bee LE V3 is based upon the nanoLOC transceiver chipset. With a configurable transmission power output, the module is capable of radio range up to 1,000 m. Typical applications are 300 – 500 m. The increased output power further stabilizes the communication reliability and connection robustness.

Features

RF standard - Chirp, 2.4 GHz, ISM band
RF frequency range- 2.4 to 2.4835 GHz, (80 MHz BW)
RF transfer rates - 1 Mbps 80/1, 250 Kbps 80/4
RF output power - Configurable, -12 to +20 dBm
RF sensitivity - 80/1 mode: -89 dBm typ.
80/4 mode: -95 dBm typ.
MCU type - ARM Cortex M4

Software
Firmware update - FOTA, over UART

Ranging and positioning
Typ. airtime per ranging cycle - 1.8 ms
Ranging accuracy1 - 1 m
Range - TApp2.: 300-500 m, Cap3.: 1,000 m

Interfaces
Host interface - UART (115 kbps to 1 Mbps)
RF interface - 50 Ohm RF Port
Other - 4x GPIOs, 1x ADC

Electrical data
Supply voltage - 3.3 V to 5.5 V
Current consumption
TX mode, active (+20 dBm) - max. 230 mA
RX mode, active max. 55 mA
Standby mode 6.5 mA
Nap mode max. 20 µA4
Snooze mode max. 3 µA
Deep sleep max. 3 µA

Package and dimensions
Dimensions - 22 mm x 23 mm x 4.4 mm
Weight -4 grams

Environmental and quality
Operating temperature -30°C to +85°C

-- nanotron Technologies product --
