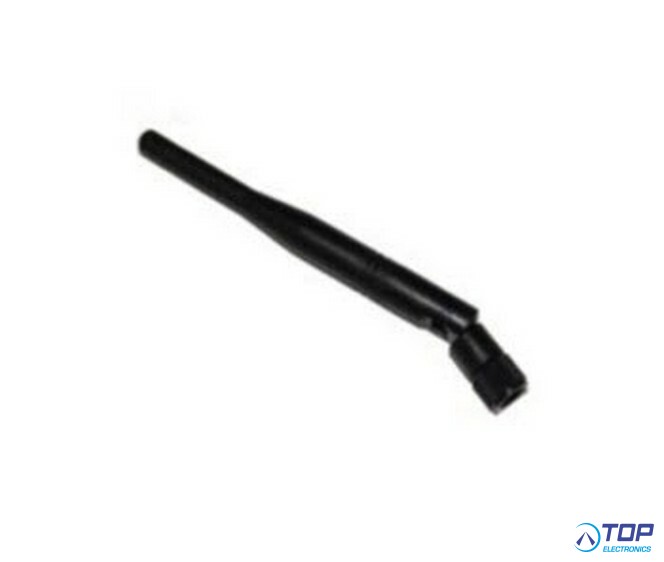

ERF4024, 2.4 / 5.0 GHz external antenna, SMA(M)

More information

Stock
In stock
Delivery time
if not in stock: 4 ~ 5 weeks
Part number
ERF4024
Manufacturer / supplier
easyRF
€ 9.60 excl VAT
ERF4024 Datasheet.pdf

Product specifications

ERF4024
The ERF4024 antenna is an 2,4 / 5GHz antenna with a SMA male connector. The antenna can also be used in the frequency band of 800 MHz.
The antenna can be used for applications such as, GSM, M2M, Wifi, BLE and Zigbee.

1.1 Electrical Properties
Frequency Band: 800 / 2200 ~ 2760/ ~4500 / 5400 ~ 6000 MHz
Nominal Impedance: 50 ohm
Polarization: Vertical
V.S.W.R: < 2.5

1.2 Mechanical Properties
Antenna Type: External Antenna
Connector Type: SMA Male
Antenna Dimensions: 104 mm ± 2
Operating Temperature Range: -30°C~+70°C
Storage Temperature Range: -30°C~+70°C

- easyRF product -

easyRF delivers easy-to-use products
IoT - Internet of Things modules, RF-tranceivers, easyTracer modules, Antennas, RF-cable assemblies, RF-connectors.
