Product specifications

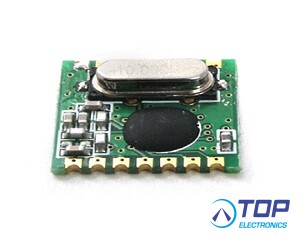

HopeRF's RFM43B are highly integrated, low cost,433/868/915MHZ wireless ISM transmitters module.
The RFM43B offers advanced radio features including adjustable power output levels of –8 to +13dBm.Power adjustments are made in 3dB steps.The RFM43B's high level of integration offers reduced BOM cost while implifying the overall system design. Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX FIFO, and automatic packet handling reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, power-on-reset (POR), and GPIOs further reduce overall system cost and size. The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC,ETSI regulations. An easy-to-use calculator is provided to quickly configure the radio settings,simplifying customer's system design and reducing time to market.
Features
Frequency range: 433/868/915MHz ISM bands
Output Power Range: –8 to +13dBm (RFM43B)
Low Power Consumption: 30 mA @ +13 dBm
Data Rate = 0.123 to 256 kbps
FSK, GFSK, and OOK modulation
Power Supply = 1.8 to 3.6 V
Ultra low power shutdown mode
Wake-up timer
Integrated 32 kHz RC or 32 kHz XTAL
Integrated voltage regulators
Configurable packet handler
TX 64 byte FIFO
Low battery detector
Temperature sensor and 8-bit ADC
–40 to +85 °C temperature range
Integrated voltage regulators
Frequency hopping capability
On-chip crystal tuning
Low cost
Power-on-reset (POR)
Applications
Remote control
Home security & alarm
Telemetry
Personal data logging
Toy control
Wireless PC peripherals
Remote meter reading
Remote keyless entry
Home automation
Industrial control
Sensor networks
Health monitors
