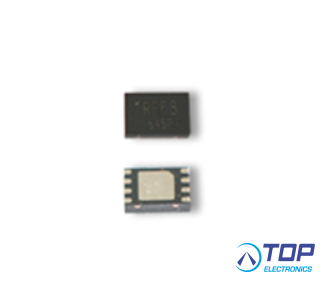

RF96, 137-1020MHz LP Long Range Transceiver

More information

Stock
100 pcs
Delivery time
please contact us for more information
Part number
RF96
Manufacturer / supplier
HopeRF
Datasheet
View datasheet
€ 9.91 excl VAT
Contact us Technical support Quotation request

Product specifications

RF96 137 - 1020 MHz Low Power Long Range Transceiver chip

The RF96 transceiver feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

Parameters:
Frequency Range: 137 - 1020 MHz
Spreading Factor: 6 - 12
Bandwidth: 7.8 - 500 kHz
Effective Bitrate: .018 - 37.5 kbps
Est. Sensitivity: -111 to -148 dBm

Using Hope RF‟s patented LoRaTM modulation technique RF96 can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.
LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RF96 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

- HopeRF Microelectronics product -
