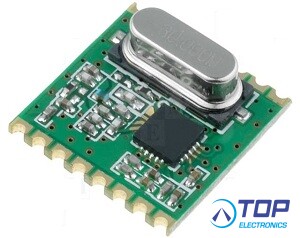

RF23B, +13 dBm Single chip wireless ISM Transce

More information

Stock
In stock
Delivery time
please contact us for more information
Manufacturer / supplier
HopeRF
Datasheet
View datasheet
€ 9.23 excl VAT

Product specifications

Single chip wireless ISM transceivers +13 dBm Max

Hoperf RF22B/23B devices are highly integrated, single chip wireless ISM transceivers. The high-performance family includes a complete line of transmitters, receivers, and transceivers allowing the RF system designer to choose the optimal wireless part for their application.
The RF22B/23B high level of integr ation offers reduced BOM cost while simplifying the overall system design. The extremely low receive sensitivity (–121 dBm) coupled with industry leading +20 dBm output power ensures extended range and improved link performance. Built-in antenna diversity and support for frequency hopping can be used to further extend range and enhance performance.

The RF22B/23B offers advanced radio features including continuous frequency coverage from 240–960 MHz in 156 Hz or 312 Hz steps allowing precise tuning control. Additional system features such as an automatic wake-up timer, low battery detector, 64 byte TX/RX FIFOs, automatic packet handling, and preamble detection reduce overall current consumption and allow the use of lower-cost system MCUs. An integrated temperature sensor, general purpose ADC, poweron- reset (POR), and GPIOs further reduce overall system cost and size.

The RF22B/23B’s digital receive archit ecture features a high-performance ADC and DSP based modem which performs demodulation, filtering, and packet handling for increased flexibility and performance. The direct digital transmit modulation and automatic PA power ramping ensure precise transmit modulation and reduced spectral spreading ensuring compliance with global regulations including FCC, ETSI, ARIB, and 802.15.4d regulations.
An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market.

- HopeRF Microelectronics product -
