Product specifications

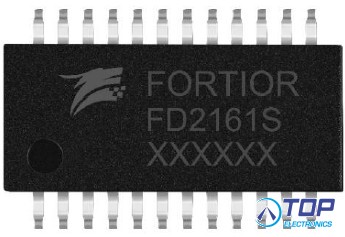

Fortior Tech FD2161S
100V Three-phase Gate Driver
FD2161S is an integrated circuit (IC) that integrates three independent half-bridge gate drivers. It is specially designed for high-voltage and high-speed MOSFET driver applications.
FD2161S supports VBB/VBS under-voltage lockout (UVLO) feature, protecting the power tube from operating with insufficient voltage.
5V/30mA LDO and 12V/30mA LDO supply power for MCU or others.
FD2161S also provides cross-conduction prevention and deadtime insertion to effectively protect the power IC and prevent both MOSFETs of each half-bridge from switching on at the same time.
APPLICATIONS
- Power tools
Features
- Fully operational to +100V
- Power supply: 4.4V ~ 20V
- Output current: +0.6A/-0.6A
- Three independent half-bridge drivers
- 3.3V/5V logic input compatible
- VBB/VBS under-voltage lockout (UVLO)
- Integrated 5V LDO and 12V LDO
- Cross-conduction prevention logic
- Built-in deadtime module
- Inputs in phase with outputs
- For more details see datasheet.
