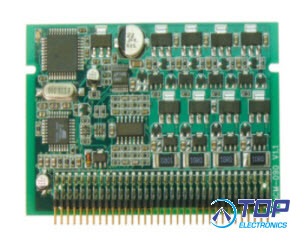

TMCM-090-H, 1-axis PIEZO motor driver module 3kHz/48

More information

Stock
2 pcs
Delivery time
please contact us for more information
Manufacturer / supplier
Trinamic Motion Control
€ 135.17 excl VAT
Contact us Technical support Quotation request

Product specifications

TRINAMIC TMCM-090-H
1-axis PIEZO motor driver module 3kHz/48V

the TMCM-090 is a compact piezo motor driver module for high precision and highly dynamic piezo axis. It is specially designed for four phase piezo motors, like the PIEZO motor "Piezo Legs". It can be combined with the driver-less modules TMCM-301 or TMCM-302 or with any step/direction controller. The TMCM-323 can be added for encoder feedback. Its small size makes it an optimum solution for integration on any user board. The board can be connected to a baseboard or customized electronics with a pin connector. Applications are optical and analytical instruments. Its high microstep resolution leads to a linear motor resolution of about 2nm per microstep.

Specifications:

Electrical data
- up to 3 kHz cont. fullstepping rate (100nF load)
- 48V DC motor supply voltage
- 5V DC logic supply voltage

Supported motors
- Piezo legs four phase motor

Interface
- Step / Direction input (TTL/CMOS signal)
- SPI™ interface

Features
- up to 1024 times microstepping for highest motor precision
- low EME design for the ease of use

Other
- the module is pin compatible to the TMCM-035
- 68 pin connector carries all signals
- horizontal & vertical option
- Size: 80x50mm² (credit card)

Related products
- Single motor driver base board: BB-035
- Triple Motor driver/controller base board: BB-301
