Product specifications
KD016WVFID001

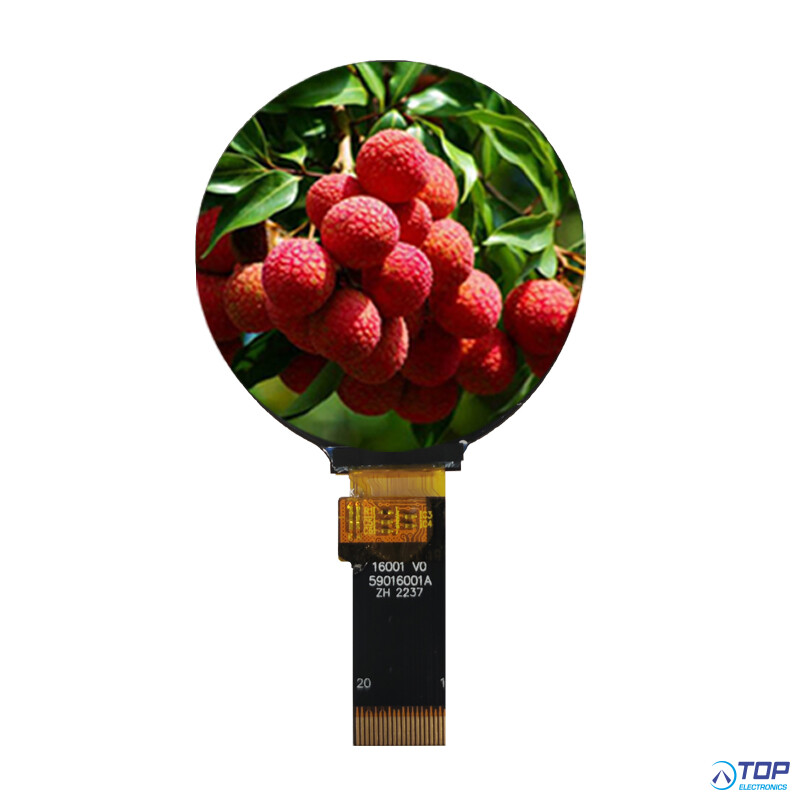

Startek 1.6" IPS Display Round
1. LCD name: 1.6 inch 400*400, ST7797, 1 Lane MIPI interface TFT LCD
2. Part No.: KD016WVFID001
3. Other model Part NO.:
4. Compatible part No.:
5. Size.: 1.6 inch
6. With touch panel or not: No
7. Display type: IPS
8. Display colors: 16.7M
9. Resolution (pixels): 400(RGB)*400
10. Pixel pitch: 0.0996(H)*0.0996(V)mm
11. Viewing direction: ALL
12. Controller IC: ST7797
13. Display mode: TransmissiveNormally Black
14. Overall size: 42.94*45.89*1.94 mm
15. Active Area: 40.54*40.54 mm
16. Luminance: 350 cd/m2
17. Contrast:1000
18. Interface type: 1 Lane MIPI
19. Pin NO.: 20pins
20. Pin pitch: 0.5mm
21. Connecting type: FPC socker
22. Input voltage: 1.65-3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 3 LED Vled =2.8-3.4V, Iled=60mA
25. LED life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -20----70 °C
28. Certification of registration: ISO9001，ISO13485，IATF16949
29. Compliant: RoHS
