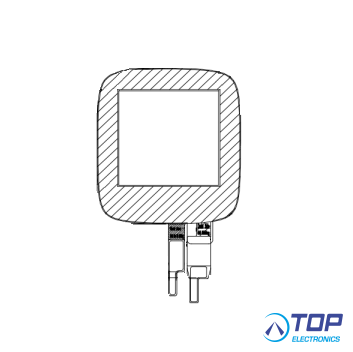

YB-TG240240C02B-C-A, 1.3" IPS with touch, Serial, 320nits

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
YB-TG240240C02B-C-A
Manufacturer / supplier
Yeebo
Datasheet
View datasheet
Contact us

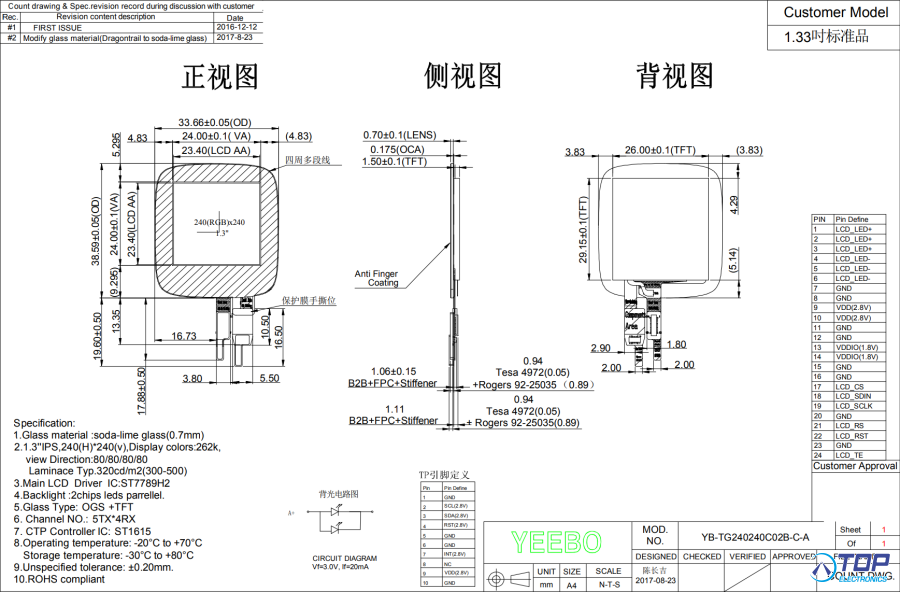

Product specifications

YB-TG240240C02B-C-A
1.3" IPS with touch, Serial, 320nits

General Specification
Module Size: 33.66(W) *38.59(H) * 2.375(T) mm
Display Size(Diagonal): 1.3 inch
Display Format: 240 (RGB)* 240 Pixels
View Area: 24.0 (W) * 24.0(H) mm
Active Area: 23.4(W) *23.4(H) mm
LCD Type: TFT (262K)/ Trans missive / Normal Black
Viewing Direction: 80/80/80/80
TFT Controller IC: ST7789H2
TFT Interface: Serial
CTP Controller IC: ST1615
CTP Interface: I2C
CTP Surface Hardness: >6H
Brightness: 320 nits
Weight(g): ≈4.96

--- YEEBO product ---
