Product specifications
KD013QVFMD007

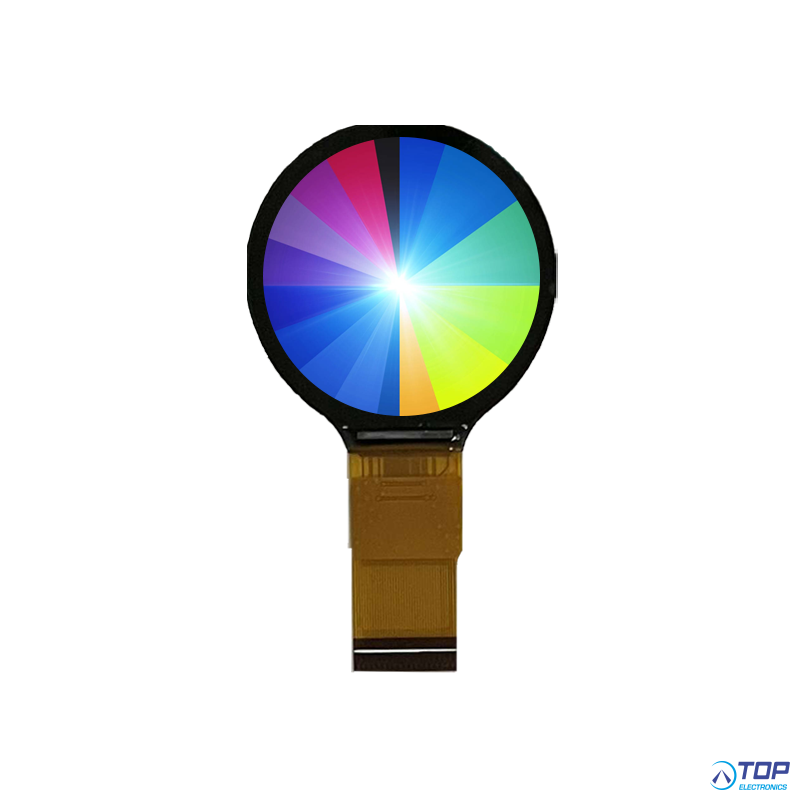

Startek 1.3" IPS Display Round
1. LCD name: 1.3 inch 240*240, GC9A01, 16/18 bit RGB +3/4 SPI interface, 8/9/16/18 MCU, 3/4 line serial TFT LCD
2. Part No.: KD013QVFMD007
3. Other model Part NO.:
4. Compatible part No.:
5. Size.: 1.3 inch
6. With touch panel or not: No
7. Display type: IPS
8. Display colors: 65K/262K
9. Resolution (pixels): 240(RGB)*240
10. Pixel pitch: 0.135(H)*0.135(V)mm
11. Viewing direction: ALL
12. Controller IC: GC9A01
13. Display mode: Transmissive Normally Black
14. Overall size: 35.6*37.74*1.58 mm
15. Active Area: 32.4*32.4 mm
16. Luminance: 650 cd/m2
17. Contrast:800
18. Interface type: 8/9/16/18 bit MCU 3/4 SPI+16/18 BIT RGB 3/4 line serial interface
19. Pin NO.: 39pins
20. Pin pitch: 0.3mm
21. Connecting type: FPC socker
22. Input voltage: 2.8-3.2V
23. Backlight type and color: LED backlight/white
24. Backlight: 2 LED Vled =2.8-3.2V, Iled=40mA
25. LED life span: 50000h
26. Operating temperature range: -20----70 °C
27. Storage Temperature range: -20----70 °C
28. Certification of registration: ISO9001，ISO13485，IATF16949
29. Compliant: RoHS
