Product specifications
97701

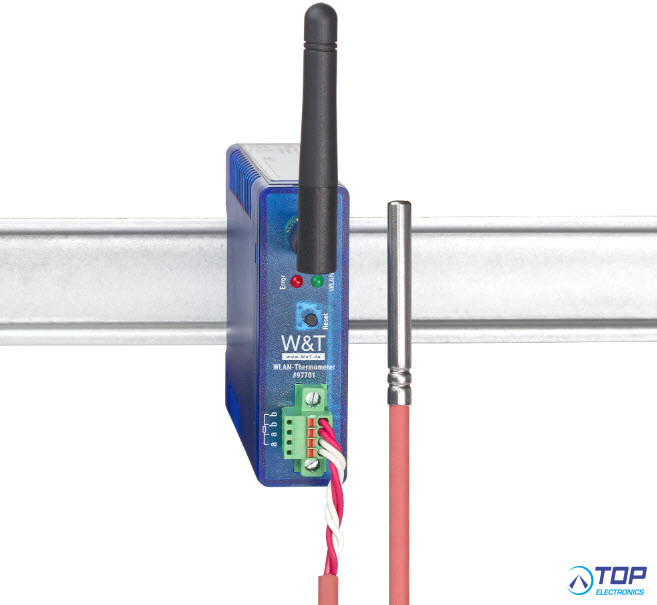

WLAN Thermometer 1x Pt100
Measure, log and report...
The WLAN Thermometer is a device that measures temperatures and makes the values available in the network via WLAN. The device can be connected with the W&T cloud, send MQTT messages or push notifications to smart phones.
Sensor:
Pt100 temperature sensor:
- Measuring range of W&T probe: -50°C...180°C
- Measuring input: -200°C...650°C
Connectivity:
- Operation in Access Point mode or WLAN Client mode possible.
- Intuitive Web interface for simpler configuration
- Monitor temperatures and trends with your browser
- Alarm and reporting function:
- MQTT messages
- Push notifications to a phone using ntfy.sh
- Activation code for the W&T Cloud Access included in scope of delivery
- Single value query:
- Direct access to current measurement values via HTTP or TCP sockets.
- Current Industry 4.0 protocols:
- MQTT support
Possible applications:
- Monitor temperatures in the server room, network cabinet or office
- Messages when high or low temperature limits are exceeded
- Green IT: Monitor efficiency of the server room climate control
Data logger:
- local, volatile data memory for two data
- Document measurement data online in the W&T Cloud and access from anywhere in the world
Standards & more
optional: ISO factory calibration per DIN EN ISO/IEC 17025
with calibration certificate for verified documentation of the measured value deviations
Valid for 12 months
optional: DAkkS/DKD calibration per DIN EN ISO/IEC 17025
with calibration certificate for verified traceability to national standards
Valid for 12 months
Conforms to standards both in office and industrial environments:
High noise resistance per EN 61000-6-2
Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
