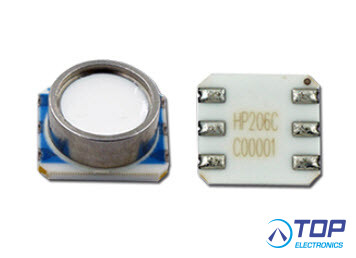

HP206CW, Waterproof MEMS Altimetric Pressure Modu

More information

Stock
Out of stock
Delivery time
please contact us for more information
Manufacturer / supplier
HopeRF
Datasheet
View datasheet
€ 6.53 excl VAT
Contact us Technical support Quotation request

Product specifications

HP206CW

The HP206CW employs a MEMS pressure sensor with an I2C interface to provide accurate Temperature, Pressure or Altitude data. The sensor Pressure and Temperature outputs are digitized by a high resolution 24-bit ADC. The Altitude value is calculated by a specific patented algorithm according to the pressure and temperature data. Data compensation is integrated internally to save the effort of the external host MCU system.

Easy command-based data acquisition interface and programmable interrupt control is available. Typical active supply current is 5.3 μA per measurement-second while the ADC output is filtered and decimated by 256. Pressure output can be resolved with output in fractions of a Pascal, and Altitude can be resolved in 0.1 meter. The HP206C is offered in a 6.3 mm x 6.8 mm x 3.0 mm package and specified for operation from -40°C to 85°C.

Features;

- 1.8V to 3.6V Supply Voltage

- Fully Compensated Internally

- Command-based Reading, Compensated (Optional)

- Pressure: 20-bit Measurement (Pascals)

- Altitude: 20-bit Measurement (Meters)

- Temperature: 20-bit Measurement (°Celsius)

- Configurable ADC Decimation Rate via Commands

- Programmable Events and Interrupt Controls

- Altitude Resolution down to 0.1 meter

- I²C interface

- Waterproof Design

Application;

- High Accuracy Altimetry

- Smartphones / Tablets

- Personal Electronics Altimetry

- GPS Dead Reckoning

- GPS Enhancement for Emergency Services

- Map Assist, Navigation

- Weather Station Equipment
