VNA-0440-ESB, VNA Starter Kit 0440e

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
MegiQ VNA Starter Kit 0440e
Manufacturer / supplier
MegiQ
Datasheet
View datasheet
€ 3360.00 excl VAT

Product specifications

MegiQ VNA Starter Kit 0440e

The VNA-0440e is full bi-directional 2½-port Vector Network Analyzer that is controlled from a PC through a USB connector.

This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.

With its small size it can also be used near the antenna inside a large device or installation. It's also ideal for on-site measurements.

The extra Generator port provides an additional signal port that can be used for measuring 3-port devices.

A built-in Bias Generator provides a voltage/current source from -12V to +12V and 100mA. Each of the three ports can be routed to either the bias voltage, ground, or open.

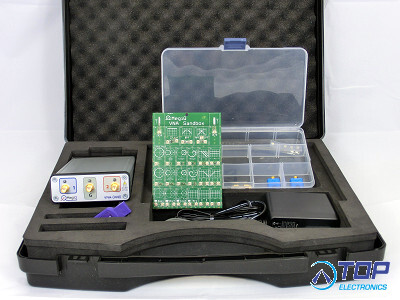

Pack content:
1 x VNA-0440e
VNA-0440e, Full Featured, 400-4000MHz Vector Network Analyser, 2 / 3 port

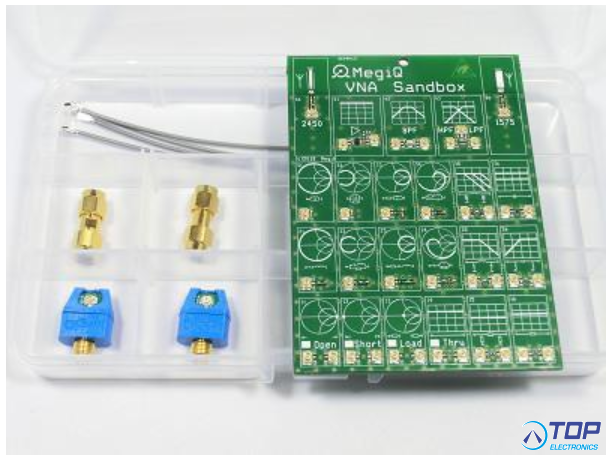

1 x VNA Sandbox
Tutorial kit with thoroughly explained real life measurements.

-- MegiQ product --

Related products

MegiQ Sandbox

RF-Sandbox and Educational Board

€ 375.00

MegiQ VNA-0440e

Full Featured, 400-4000MHz VNA, 2/3 port

€ 3275.00
