UFL-BAL-KIT, UFL Balanced Calibration Kit

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
MegiQ BAL-CAL-kit
Manufacturer / supplier
MegiQ
Datasheet
View datasheet
€ 475.00 excl VAT

Product specifications

MegiQ MegiQ BAL-CAL-kit
Balanced and UFL Calibration kit

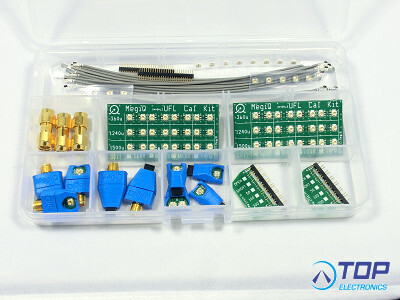

The Balanced Calibration Kit is an interface kit for UFL and balanced VNA measurements. It contains SMA-UFL adapters and several adapters from SMA and UFL to balanced pinheaders.

The UFL connector was introduced by Hirose as the U.FL connector and became very popular for connecting RF signals in consumer electronics. There are several varieties from other manufacturors and are also known as UMC or UMCC connectors.

The UFL calibration kits provides a calibration for UFL footprints for different print stacks (layer thickness). Since it contains a double set of impedances, a full 2-port calibration can be performed in 4 steps instead of 8.

The balanced interface has an Open-Short-Load calibration kit using pin-headers. When the same pin-headers are used for the measurement it will be calibrated at the tip of the pins.

This Balanced Calibration Kit allows measuring balanced antennas, strip lines, transceiver chip impedances etc.

The kit comes in a handy accessories box and contains:
SMA-m/m adapters
SMA-UFL adapters
UFL/UFL cables
UFL-jacks (SMT for mounting on your target board)
SMA to Balanced Line probes
UFL to Balanced Line probes
Dual UFL to Differential probe
Blank pin headers for connecting balanced probe to your target board)
Balanced calibration tools (OSLT) (with 50, 100 and 200 ohm loads)
UFL calibration tools (OSLT)
User Manual
