Product specifications

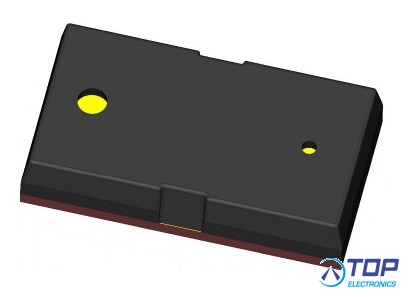

The SOT26-001 is a highly integrated, compact single point direct Time of Flight (dToF) sensor module which integrates a VCSEL emitter, a single photon avalanche diode (SPAD) sensor, microlens, Time Digital Converter (TDC) and MCU. This sensor uses dTOF technology, built in sunlight suppression and anti cover dirt algorithm, the measurement accuracy is not affected by reflectivity of the target object in different environments, and can achieve accurate ranging of up to 4m.
The sensor supports Firmware updates through the IIC, can be customized according to customer's requirements model and algorithm. The sensor is designed with eye safety control circuit, which meets the requirements of Class I eye safety standard.
Features:

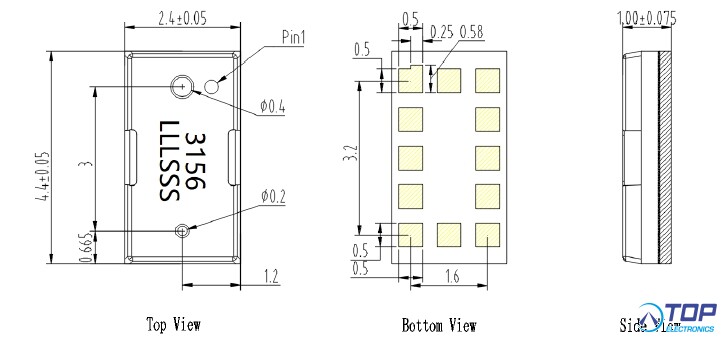

- Fully integrated SIP module: Transmit and receive integration, Package: Optical LGA, Size: 4.4×2.4×1.0 mm
- Distance measurement: Range: up to 5 m, Ranging rate: up to 50 Hz, Measurement accuracy: ±3%
- Optics: Class 1 laser device, 940 nm VCSEL emitter
- Characteristics: Direct time-of-flight measurement, On-chip histogram based algorithm, Eliminate crosstalk, Support multiple cover glass, Cover glass calibration, Dynamic compensation for smudge on glass
- Interface and work environment: IIC interface, Extremely low power consumption in sleep mode, Operation Temperature: -20~70℃, Good temperature stability, Compliant with ROHS and REACH regulations
Applications:
- Distance measurement for camera autofocus (LDAF)
- Proximity detection
- Collisions avoidance
- 1D gesture recognition
- Object detection supporting low-power system operation
