Product specifications

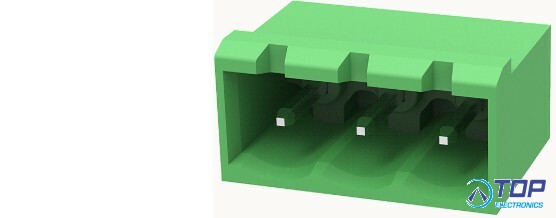

2EDGRC-5.08-03P - 10030001537
Process Wave soldering/manual soldering
Electrical parameters UL
Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A
Electrical parameters IEC
Rated voltage 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV
Item properties
Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 5.08mm
Number of potentials 2
Pluggable or not Yes
Number of rows 1
Material data
Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0
Mechanical tests
Test Specification IEC61984/ UL1059
Environmental data
Ambient temperature (operation) -40℃~105℃(depending on derating curve).
