Product specifications

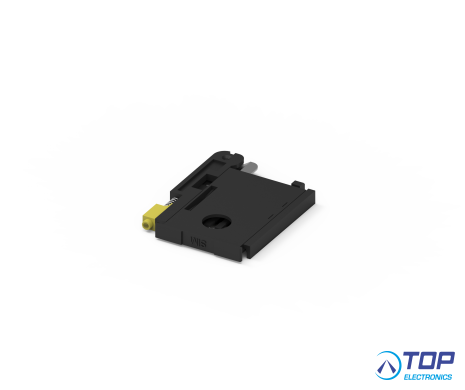

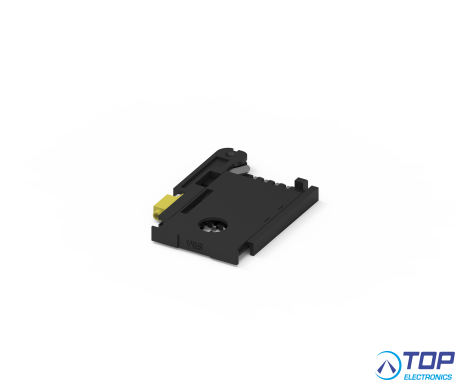

Attend 115T-BAA1
SIM Card Socket, 8 Pin Bar Push w/switch w/o post, 1u"
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
115T-BAA1 stands for connector only. It's need to used with SIM card tray
115-00004: SIM Card Tray for 115T Series
Applications:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
Specifications:
- Current: 1A Max, 10u A Min.
- Voltage: 50V Max
- Contact Resistance: 50mΩ
- Insulation Resistance: 1,000MΩ / 500V DC
- Dielectric Withstanding Voltage: 500V AC at 1 minute
- Durability: 5,000 Cycle Min.
- Press Force: 0.5N
- Operating temperature range: -40℃~+85℃
- Storage temperature range: -40℃~+85℃
- Recommended IR-Reflow Temperature: 260℃ 10Sec
- Attend Technology product -
