Product specifications

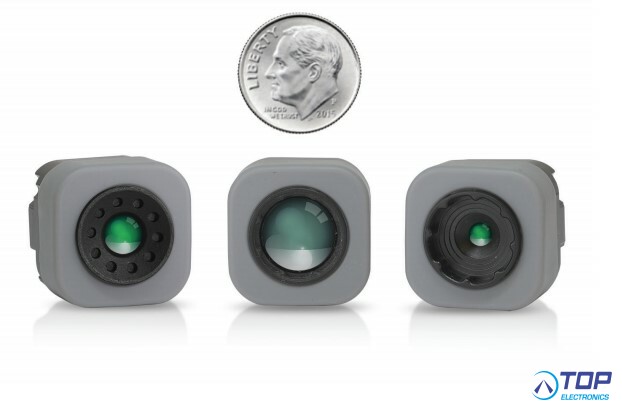

Mosaic Core 200x150 with 9.1mm Lens
C209SP
OPTICS & MECHANICAL:
- Resolution: 200 x 150
- Focal Length: 9.1mm
- F-number (focal length/aperture): f/1.00
- Spatial Resolution (IFOV, center): 1.32
- HFOV: 15°
- VFOV: 12°
- Detection Range: 758nm
- Recognition Range: 190nm
- Identification Range: 108nm
- Distance to Spot Ratio: 126:1
- Ingress Protection: IP67
- Core Dimensions Without Cushion: (L x W x H) 20 x 20 x 21mm
- Core Weight: 12gr
- Focus: Fixed
- Lens Material: Chalcogenide

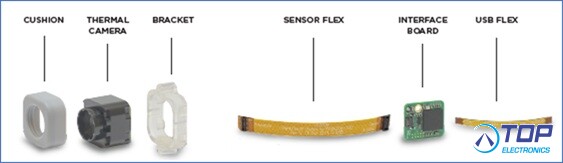

Available Starter Kit: S209SP
KEY FEATURES:
- High-Resolution Thermal Sensors
Choose a core with 30,000 or 76,800 temperature pixels with excellent
image clarity and sensitivity
- Dual-Gain Smart Pixels
Each pixel automatically adjusts gain states to maximize resolution
contrast when viewing hot and cold objects in the same scene
- 12 Micron Pixels
More resolution and temperature data packed into a physically tiny
array enables small form factor applications and lower cost
- Options For <9Hz or Fast Frame
Perfect for regions where <9Hz is required and available up to 32Hz
Fast Frame where higher frame rates are preferred and permitted
- Customizable To Meet Your Design Goals
Select the ideal thermal core for your project with options for
resolution, field of view, frame rate and more
- Add a Visible Light Camera
SDK support available for integrating a visible light camera to fuse
thermal and visible images together for additional context
