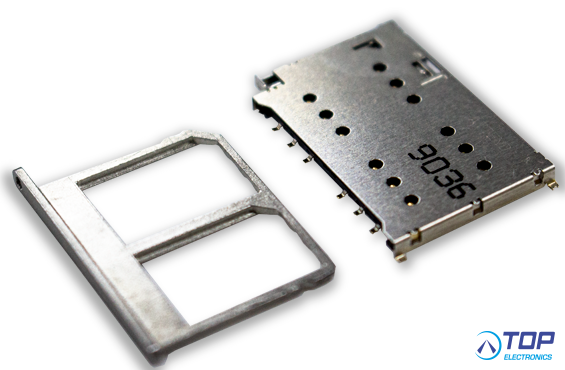

115S-BS00, Nano SIM Socket, Dual Card Tray

More information

Stock
In stock
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
115S-BS00
Manufacturer / supplier
Attend Technology
Datasheet
View datasheet
Contact us

Product specifications

Attend 115S-BS00

Nano SIM Socket, Dual Card Tray, Eject Type, 30u

Also available on a complete reel of 1200pcs, see part 115S-BS00-T.

ELECTRICAL
Current Rating: 0.5A max.
Voltage Rating: 10VAC/DC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC

MECHANICAL
Durability: 2,000 Cycle
Tray Insertion Force: 10N max.
Tray Extraction Force: 3N min.
Contact Normal Force: 0.2N min. per pin

ENVIRONMENTAL
Operating temperature range: -40°C~+105°C
Storage temperature range: -40°C~+105°C

SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C

RoHS compliant products

- Attend Technology product -
