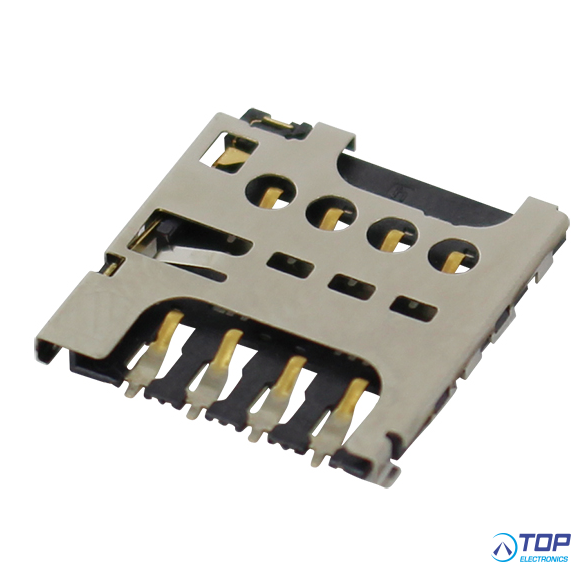

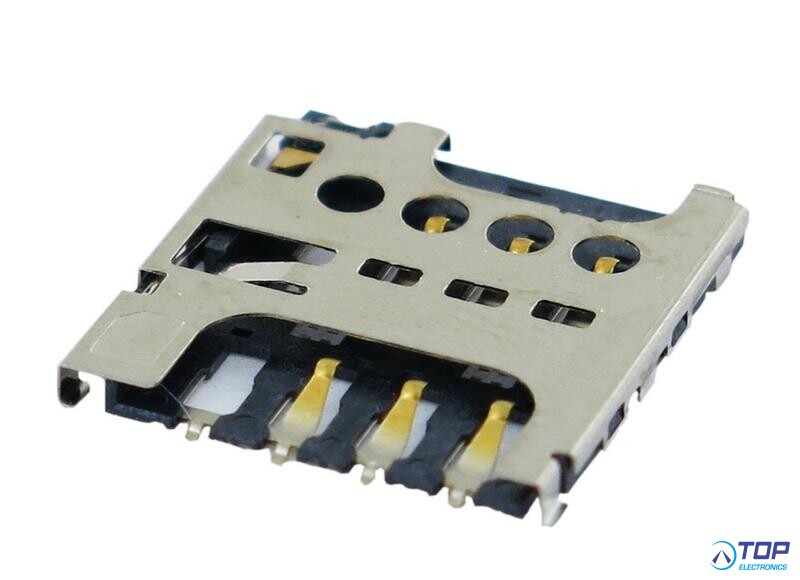

115I-BEAA-RA1, Micro SIM Card Holder, 8Pin, Push-Pull,

More information

Stock
In stock
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
115I-BEAA-RA1
Manufacturer / supplier
Attend Technology
Datasheet
View datasheet
6Pin
SMT Type
€ 0.95 excl VAT
Quantity
Unit price
From 10 pcs€ 0.90
From 100 pcs€ 0.62

Product specifications

Attend 115I-BEAA-RA1
Micro SIM Card Holder, 8Pin, Push-Pull, SMD

MECHANICAL
Durability: 500 Cycle
Contact Normal Force : 0.3N~0.35N
Insert Force: 10N
Withdrawal Force: 0.5N

ELECTRICAL
Current Rating: 0.5A
Voltage Rating: 10VDC
Contact Resistance: 100mΩ Max
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC for 1 minute

ENVIRONMENTAL
Operating temperature range: -40°C to +85°C
Storage temperature range: -40°C to +85°C

- Attend Technology product -
