Product specifications

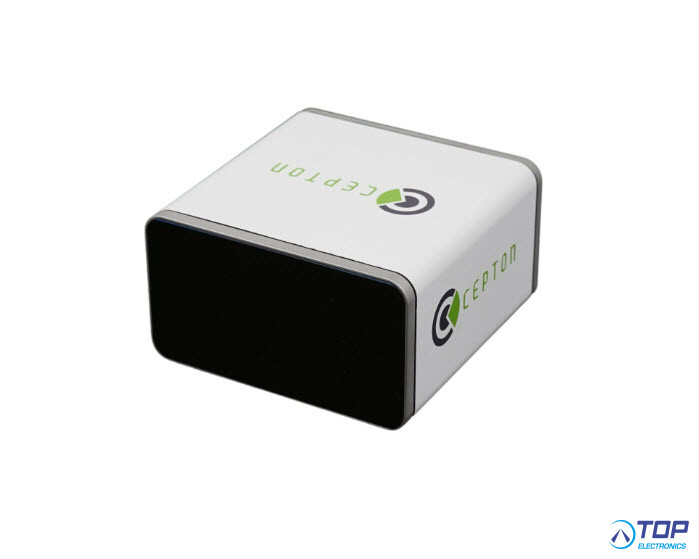

Vista™-P60 delivers long range and high resolution for various applications such as autonomous vehicles, ADAS, intelligent transportation systems (ITS), security, crowd analytics, industrial robotics and beyond. Offering an exceptional combination of performance, reliability and affordability, it features an extremely compact and embeddable design suitable for seamless integration into a wide range of autonomous systems.
- Cepton's patented MMT™ - frictionless, mirrorless, non-rotational
- Exceptional point density at an attractive price and small form factor
- Robust environmental protection and modular design ideal for high volume manufacturability
- Compatible with Cepton's Helius™ Smart Lidar system for intelligent, real-time perception
- Power over Ethernet feature available with paired PoE module
HIGH PERFORMANCE:The Vista-P60 LiDAR delivers 200 meters of range, 0.25 degree of horizontal & vertical resolution. The dense point cloud is generated at 312,000 points per second in single return mode.
SMALL SIZE:Without compromising performance or reliability,Vista-P60’s compact size and 10W power consumption allows for a
seamless integration.
UNIQUE DESIGN:The Cepton patented MMT™ LiDAR architecture is free of rotational or frictional components. This makes the Vista-P60
LiDAR reliable and suitable for extreme environmental conditions.
Specifications
- Detection range: 200m (reflection 30%)
- Weight: 900 gram
- FOV (HxV): 60 x 24 degrees
- Angular Resolution (HxV): 0.25 x 0.25 degrees
- Frame rate: 10hz
- Size (WxHxD) mm: 102 x 58 x 118mm
- Power Consumption: 10W
- Range Resolution: 2 cm (1σ)
- Operating Voltage: 10V-15V
- Laser Wavelength: 905mm
- Laser Safety: Class-1 eye safe
- Multi Return: Up to 2 returns
- Vibrations/Shock: 5Grms/50G 1000 shocks
- Operating Temperature: -40°C ~ +85°C
- Environmental Protection: IP67
- GPS / Network: 100 Mbps Ethernet, UDP Packet Synchronized Timestamps Position, Distance, Intensity
- Platform Support: Linux (Ubuntu 16.04), Windows 7+
Compatible with Vista-Edge™
-- Cepton Technologies product --
