Product specifications

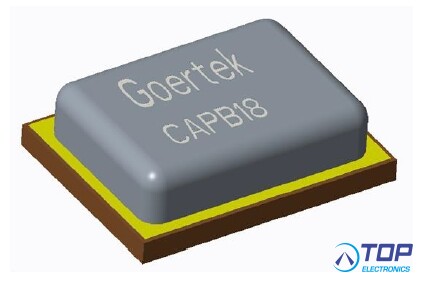

The CAPB18-002 is an integrated environmental sensor unit with an ultra-small size. The unit combines digital high accuracy pressure sensor and high SNR analog microphone.
The pressure module highlights a capacitive sensing element, 24-bit results and FIFO output, which bring in high accuracy, ultra high precision during temperature changes and very low power consumption. Its I2C interface allows for easy system integration with microcontroller.
The microphone module features high sensitivity and high SNR with low power consumption. The analog output can trace change of environment sound signal timely.
Key features:

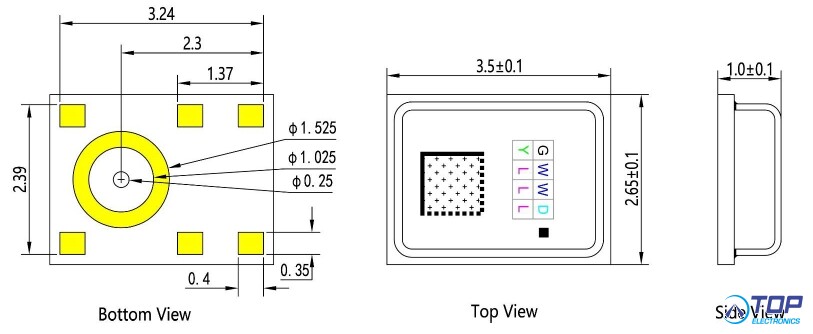

- Package dimensions: 7-pin LGA, 3.5 mm x 2.65 mm x 1.0 mm
- Pb-free, halogen-free and RoHS compliant
Pressure sensor:
- Operation range: Pressure: 300 ~ 1100 hPa. Temperature: -40 ~ +85 °C
- Supply voltage: P-VDD: 1.7 ~3.6 V
- Pressure sensor precision: ± 0.003hPa (or ±0.025 m) for high precision mode
- Pressure sensor accuracy: ± 0.03hPa (or ±0.25 m) (relative), ±0.5hPa (or ±0.6 m) (absolute)
- Temperature accuracy: ± 1.0°C
- Pressure temperature sensitivity: typ. 0.5Pa/K
- Measurement time: 3.1ms for low precision mode
- Average current consumption: 3 μA 1 sample / sec. in low power mode
- I2C interface (up to 3.4 MHz), Embedded 24-bit ADC
- FIFO: Stores latest 32 pressure or temperature measurements
Microphone:
- Supply voltage: 1.6 ~3.6V (M-VDD)
- Low power: Current consumptions 120uA
- High sensitivity: -38±1dB
- High SNR : 65dB
- Analog Signal Interface
Typical applications:
- Enhancement of GPS navigation (dead-reckoning, slope detection, etc.)
- In-door and out-door navigation
- Leisure and sports
- Weather forecast
- Vertical velocity indication (rise/sink speed)
- Analog Audio Signal
- Goermicro product -
