IQ-AAA, InspectionCAM - 320 x 240 Thermal Sensor

More information

Stock
3 piece(s)
Delivery time
please contact us for more information
Manufacturer / supplier
Seek Thermal
€ 696.25 excl VAT
Contact us Technical support Quotation request
inspectioncam_-_spec_sheet_v3.pdf

Product specifications

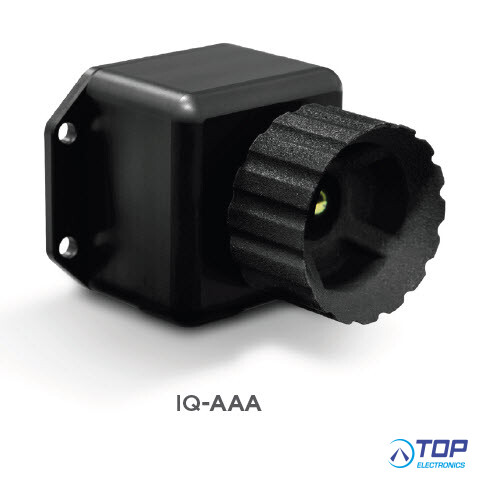

Seek IQ-AAA InspectionCAM

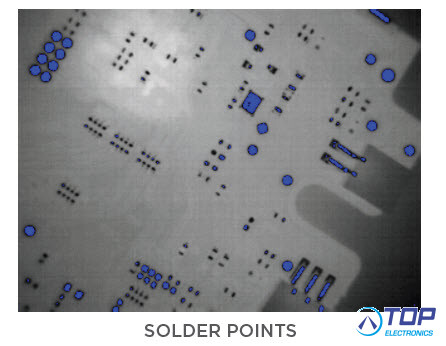

Seek Inspection Camera is a low-cost, high-resolution thermal imaging solution that enables fast, detailed analysis of electronic components. The data and heat signature provided by a thermal image can reveal undesired operating states, such as excessive thermal stress, damaged boards and components, and other potential failure points invisible to the naked eye. Seek Inspection Camera eliminates the difficulty and time-consuming task of identifying these failures using other test and measurement equipment.
Seek Inspection Camera is ideal for first article and incoming quality inspection, monitoring tight spaces, and general testing and scientific research.

Designed and Manufactured in the USA with Global Components. NDAA Compliant.

KEY CAMERA SPECS
- 320 x 240 Thermal Sensor
76,800 temperature pixels for maximum image clarity and sensitivity

- Adjustable 9.1mm f/1.0 lens
4cm minimum focal distance with a spot size of 52μm per pixel

- ± 5°C Temperature Accuracy

- 52 μm per pixel at minimum focus
Observe very high and low temperatures simultaneously with clarity and accuracy

- Imagery, data, and power over USB

- Qualified for laboratory use
EN IEC 61326-1 certified for laboratory use

BENEFITS
- Thermal Provides Fast & Accurate Analysis

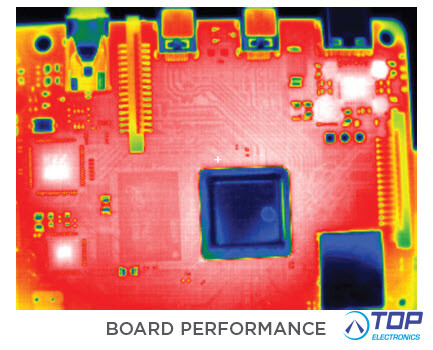

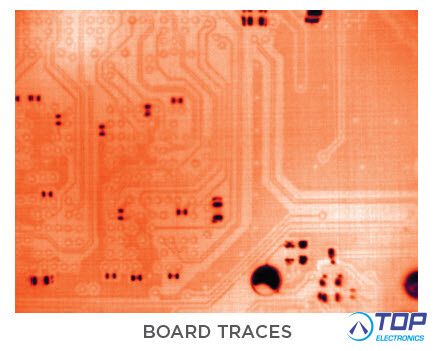

See electrical flow and layout of an entire board in seconds

- Confirm Electrical Repairs are Successful
Use temperature data and thermal images to ensure electronics are working as designed

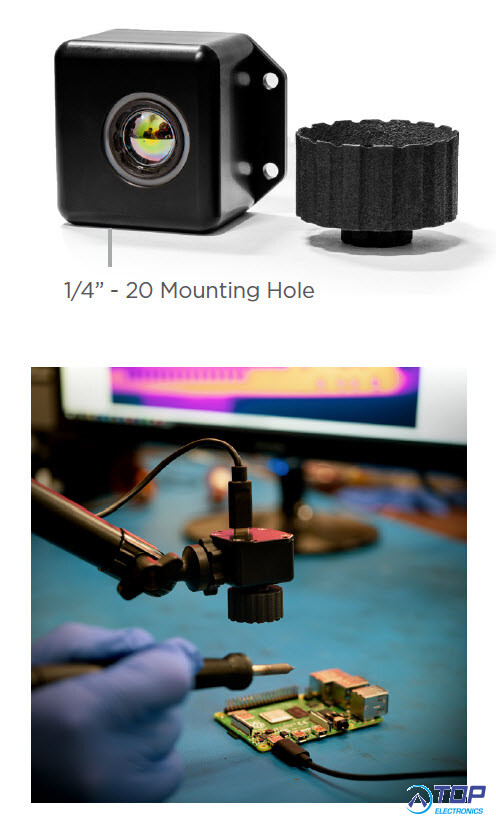

- See Detail Up Close
Evaluate performance in high detail with a large lens and small
minimum focus distance

- Use Thermal Data for Automation
Process millions of data points a second in a variety of machine learning and AI algorithms

-Easy Integration
Use pre-built software or take advantage of SDKs for custom integration with existing systems

-- Seek Thermal product --
