Product specifications

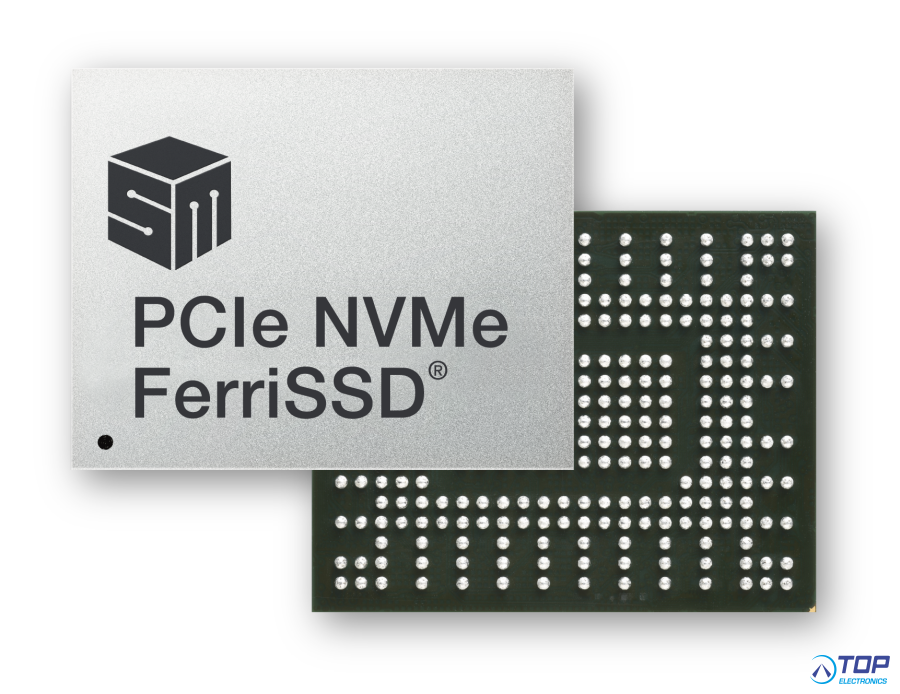

128GB FerriPCIe Gen4 x 4 BGA SSD, Samsung V8 NAND, I-Temp
Available in TLC or pSLC config
The new generation FerriSSD Bx series is armed with the latest PCIe Gen 4 x4 and 3D NAND Flash and
leverages Silicon Motion’s advanced technologies, including IntelligentScan™, DataRefresh™,
NANDXtend® ECC engine, and end-to-end data path protection to provide unsurpassed data integrity
in a non-volatile storage device. The FerriSSD stands for the ultimate storage solution for embedded
computing devices such as navigation, thin-client, POS, MFP, telecommunications, factory automation, as well as varieties of server applications.
Host Interface PCIe Gen4 x 4 Lane
PCIe Protocal NVMe 2.0 with NVMe MI Appendix C Specification
Density 120~960GB 3D TLC ; 32~320GB 3D SLCMode
HMB support DRAM-less with optional HM
Form Factor 20mm x 16mm BGA
Green Product Compliant to RoHS (Restriction to Hazardous
Substances Directive) 2.0 / Halogen Free
Temperature Support Commercial ( 0°C to + 70°C )
Industrial ( -40°C to + 85°C )
Automotive ( -40°C to + 105°C
