Product specifications

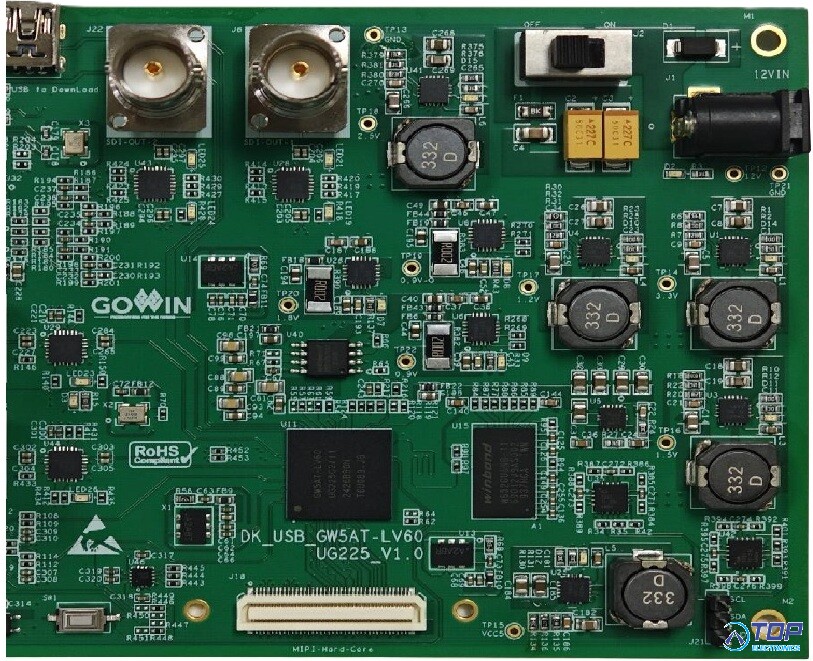

The DK_USB_GW5AT-LV60UG225_V1.0 development board targets applications with DDR3 high-speed storage, SDI and MIPI high-speed communication, and integrates SDI-IN, SDI-OUT, MIPI CPHY, MIPI DPHY, HDMI, Type-C interfaces.
It supports FPGA function evaluation, MIPI C-PHY, MIPI D-PHY, USB 3.0, 3G/6G SDI function evaluation, hardware verification, and software learning and debugging, etc.
This development board incorporates a Gowin GW5AT-LV60UG225 FPGA device from the Gowin Arora-V GW5A series of FPGA devices.
The development board kit includes the following items:
1. DK_USB_GW5AT-LV60UG225_V1.0 development board
2. 12V power (Input: AC 100-240V~50/60Hz 0.6A, output: DC12V 2A)
3. Mini USB-B Cable
