Product specifications

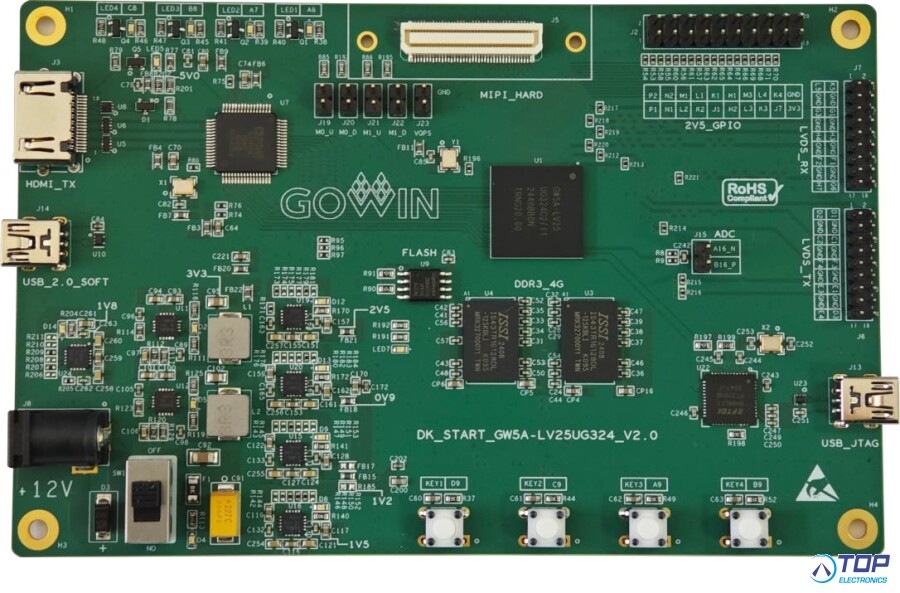

The DK START_GW5A-LV25UG324_V2.0 development board targets applications for DDR3 high-speed data storage, MIPI, LVDS high-speed communication, ADC, HDMI_TX communication, USB 2.0 communication, hardware verification, and software learning and debugging, etc.
The development board kit includes the following items:
1. DK_START_GW5A-LV25UG324_V2.0 development board
2. 12V power (Input: AC 100-240V~50/60Hz 0.6A, output: DC12V 2A)
3. Mini USB-B Cable
This development board incorporates a Gowin GW5A-LV25UG324 FPGA device from the Gowin Arora-V GW5A series of FPGA devices.
This series offers abundant internal resources, high-performance DSP with a new architecture that supports AI operations, high-speed LVDS interface and abundant BSRAM resources.
At the same time, it integrates self-developed DDR3 and SerDes, supporting multiple protocols and is provided in a variety of packages.
It is suitable for applications such as low-power, high-performance and compatibility designs.
