Product specifications

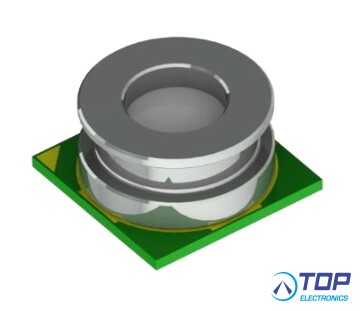

The SPL16-005 is a miniaturized Digital Barometric Air Pressure Sensor with a high accuracy and a low current consumption. The SPL16-005 is both a pressure and a temperature sensor. The pressure sensor element is based on a capacitive sensing principle which guarantees a high precision during temperature changes. The small package makes the SPL16-005 ideal for mobile applications and wearable devices.
The SPL16-005‘s internal signal processor converts the output from the pressure and temperature sensor elements to 24-bit results. Each pressure sensor has been calibrated individually and contains calibration coefficients. The coefficients are used in the application to convert the measurement results to true pressure and temperature values.
The SPL16-005 has a FIFO that can store the latest 32 measurements. By using the FIFO, the host processor can remain in a sleep mode for a longer period of time between readouts. This can reduce the overall system power consumption.
Key features:
- Absolute Pressure range: 30 ... 700kpa
- Temperature Range: 0…+60°C
- Supply voltage: 1.7 ... 3.6V (VDD)
- Absolute accuracy: typ.±0.1Kpa (90~110kpa)
- Temperature accuracy: typ. ± 1°C (0~60°C)
- Measurement time: typ. 4 ms
- Average current consumption: ＜5 μA, Standby current: ＜100nA
- I2C, Embedded 24-bit ADC
- Pb-free, halogen-free and RoHS complia
Typical applications:
- Wearable devices
- Altimeter and barometer for portable devices
- Enhancement of GPS navigation (dead-reckoning, slope detection, etc.)
- In- and out-door navigation
- Weather station equipment
- Approximately 60m water-depth measurement
