Product specifications

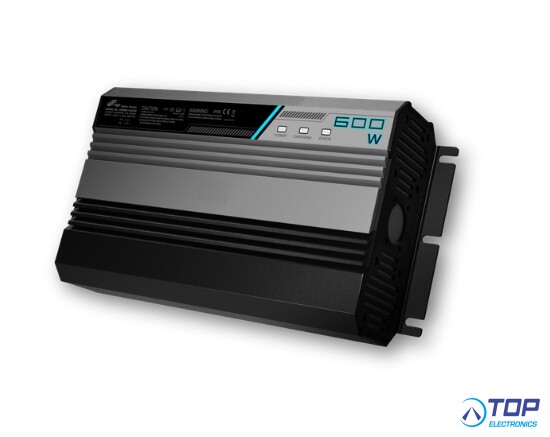

FSP600-1CH01F-C
600W on board / off board Battery Charger with CANBUS communication protocol
FSP group has released a 600W On-board /Off board battery charger with CANBUS communication protocol, FSP600-1CH01F-C, Designed for a wide variety of LEV / EV applications such as E-scooter, E-boat , E-Golf cart, Forklift truck, and AVG to name a few – all require compact, lightweight, high efficient and high reliable charging solution. With a universal input range of 90 – 264 Vac The charger fits any grid power source worldwide . In addition, an outstanding +93% efficiency (@230Vac) guarantees an optimised energy harvesting together with fan cooling with fully sealed mechanic for efficient heat dissipation.
The charger is applicable to 12S, 13S and 14S battery module. During Pre-charge stage (current mode ) output current 1A @ pre-charge voltage range 28 – 42Vdc ; Constand current mode , 10A @ charge voltage range 42.1 – 58.4Vdc and at Constant voltage mode maximum charging voltage allowed 58.8Vdc +- 1% with over voltage protection feature > 59.5Vdc. other protections features included in the charger design are short circuit, maximum charge time, full charge switch off and thermal protections. A Led indicator provides a visual signal for charger status (AC power on, Pre-charge, Charging and Error / protection ). The charger operating temperature is -15°C to +40°C, complies with IEC60068-2-64 Vibration standard, and MTBF > 50000 hours ( At maximum load and +25°C ambient, SR-332). Last but not least, the unit housed in a compact 245 x 135 x 61mm , light weight 2.2 Kg chassis.
FEATURES
- Light weight 2.2KG
- Fan coolig with Stanless case
- LED indicator
- Software upgrade with Canbus protocal
- FSP Protek Product -
