SMA Calibration kit, Basic SMA Calibration kit

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
MegiQ SMA-6B
Manufacturer / supplier
MegiQ
€ 275.00excl VAT

Product specifications

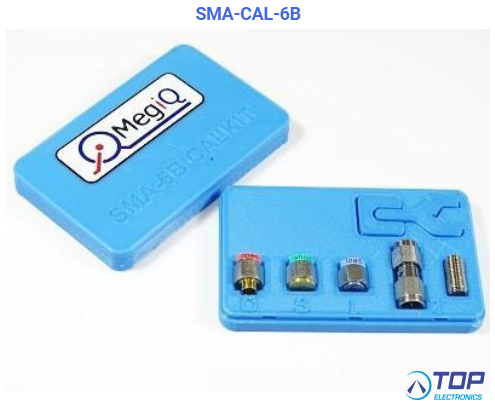

MegiQ SMA-6B

Full SMA Calkit with Male, Female and Through elements
Includes SMA wrench
Includes 2 SMA-SMA cables (25cm / 10")

The SMA-6B Basic calibration kit provides the elements for performing Open–Short–Load and Through calibrations for one and two port VNA measurements.
The male Open–Short–Load elements can be used directly on female measurement ports. With the Female-Female adapter the calibration elements provide calibration for Male measurement ports.
Two SMA wrenches (for nut and for shaft) are provided to get a reliable mating without damaging the connectors.
The Load match is better than 30dB. Generic correction coefficients for the elements are provided.
A CalKit definition file for MegiQ VNAs is available for easy import in the software.
