Product specifications
Apollo2 - Ultra-Low Power System on Chip
The Apollo2 Blue builds upon the industry's best power management efficiendy of the Apollo2 SoC Family with a System-In-Package comprised of the Apollo2 SoC and Bluetooth low energy controller to deliver a totally integrated Bluetooth low energy connectivity solution.
The device offers Bluetooth 5 ready radio and integrates 1 MB of flash memory and 256 KB of RAM to accommodate radio and sensor overhead while leaving space for application code. This System on Chip also includes several masters and one slave SPI and I²C ports and two UART ports for communicating with sensors including accelerometers, gyroscopes, and magnetometers.
Apollo2 Blue adds top rated Bluetooth low energy radio capability to an already-existing aray of relevent functionality built around the Cortex-M4 processor expressly designed for use in IoT and wearables applications.
Features
Ultra-Low Supply Current
- < 10 μA/MHz executing from flash at 3.3 V
- < 10 μA/MHz executing from RAM at 3.3 V
- < 3 μA deep sleep mode with RTC at 3.3 V
High-Performance Arm® Cortex®-M4 Processor
- Up to 48 MHz clock frequency
- Floating Point Unit (FPU)
- Memory protection unit (MPU)
- Wake-up interrupt controller with 32 interrupts
Ultra-low Power Memory
- Up to 1 MB of flash memory for code/data
- Up to 256KB of low power RAM for code/data
- 16KB 2-way Associative Cache
Ultra-low Power Interface for On- and Off-Chip Sensors
- 14-bit ADC, 15 selectable input channels available
- Up to 2.67 MS/s sampling rate
- Voltage Comparator (VCOMP)
- Temperature sensor with +/-3°C accuracy after calibration
Ultra-low Power Flexible Serial Peripherals
- 6x I²C/SP masters with 128-byte bidirectional FIFO for communication with sensors, radios, and other peripherals
- 1x I²C/SPl slave for host communications with 256-bytes LRAM area for FIFO/host support
- 2x UART modules with 32-location Tx and Rx FIFOs
- PDM for mono and stereo audio microphones
- 1x I²S slave for PDM audio pass-through
- RTC based on Ambiq's AM08X5/18X5 family
Wide Operating Range
- 1.755-3.63 v, -40 °C to 85 °C
Applications
- Headsets, Earphones, Wireless Earbuds
- Mobile Accessories
- Hearing Aids
- Always-Listening, Voice-Activated Appliances
- Portable Voice Assistants
- Remote Controls
- Smart Cards
- Fingerprint Readers
- Wearable electronics including smart watches
- Smart meters
- Wireless sensors
- Activity and fitness monitors
- Consumer electronics
Package Options

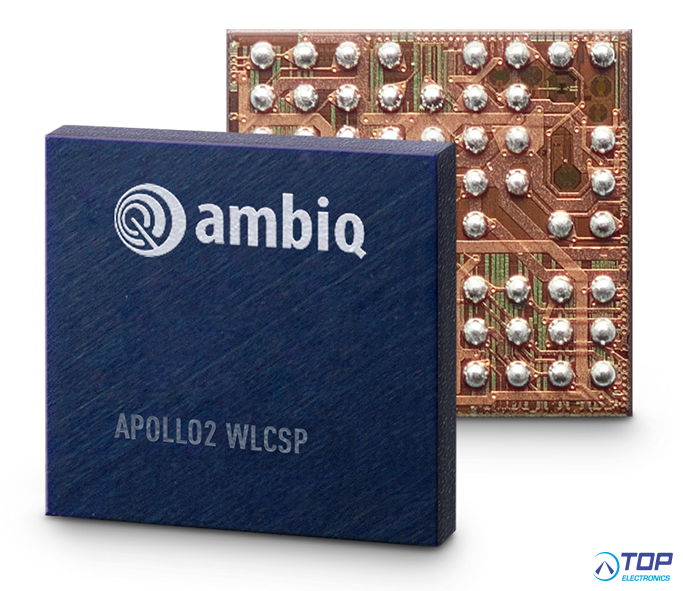

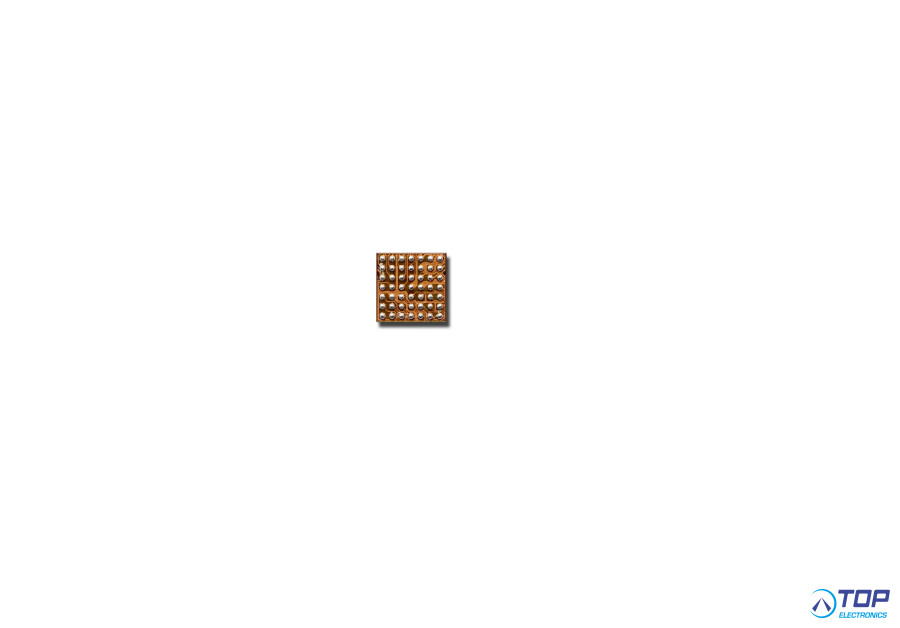

- 2.5mm x 2.5mm 49-pin CSP with 34 GPIO
Ordering Information
- AMAPHIKK-KCR (256KB RAM, 49-pin WLCSP)
