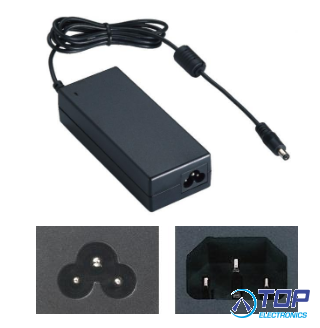

ATS090T-P160, AC DC Adapter 16V/5.63 Amps

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
ATS090T-P160
Manufacturer / supplier
Adapter Technology
Datasheet
View datasheet
Contact us Technical support Quotation request

Product specifications

ATS090T-P160

Features:

Input - Universal 100 ~ 240 Vac / 50 ~ 60 Hz input,without any slide switch
Output - 16 V / 0 ~ 5.63 A
Case dimension - 151.0 (L) * 64.0 (W) * 36.0 (H) mm ± 1 mm
Efficiency - Eff (av) ≧ 89 % (at 115 Vac & 230 Vac)
Eff ≧ 79 % (at 115 Vac & 230 Vac, 10% load)
Safety - UL / cUL / BSMI / PSE / GS / CB
EMC - CE / FCC Class B ; conduction & radiation
Protection - OVP (Over voltage protection)、SCP (Short circuit protection)、
OCP (Over current protection)
High frequency design,less power consumption
NRCan / DoE Level VI / CEC / GEMS VI / ErP ( Stage 2 ) / Meets CoC Tier 2

Input:

Voltage - Universal 100 ~ 240 Vac,single phase
Frequency - 50 ~ 60 Hz
Current - 1.2 A max.
Inrush current - 80 A max. / 230 Vac (cold start at 25 ºC,full load)
Efficiency - Eff (av) ≧ 89 % (at 115 Vac & 230 Vac)
Eff ≧ 79 % (at 115 Vac & 230 Vac, 10% load)
Power consumption - Pi ≦ 0.15 W (at 115 Vac & 230 Vac, no load)
Power factor (PF) - PF ≧ 0.9 (at full load)

Output:

Voltage - 16.0 V ± 5%
Current - 5.63 A max.
Regulation - 15.2 V min. ~ 16.0 V typ. ~ 16.8 V max.
Ripple & Noise - 160 mVp-p max.
Total power - 90 W max.
Over voltage protection (OVP) - Vout * 150 % max.
Short circuit protection (SCP) - Automatic recovery after short-circuit fault being removed
Over current protection (OCP) - Iout * 170 % max.
