PS02-A100KP-4W, Absolute - 100kPa, 15psi. Digital I²C

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
PS02-A100KP-4W
Manufacturer / supplier
CUI Devices
Datasheet
View datasheet
Contact us

Product specifications

PS02-A100KP-4W

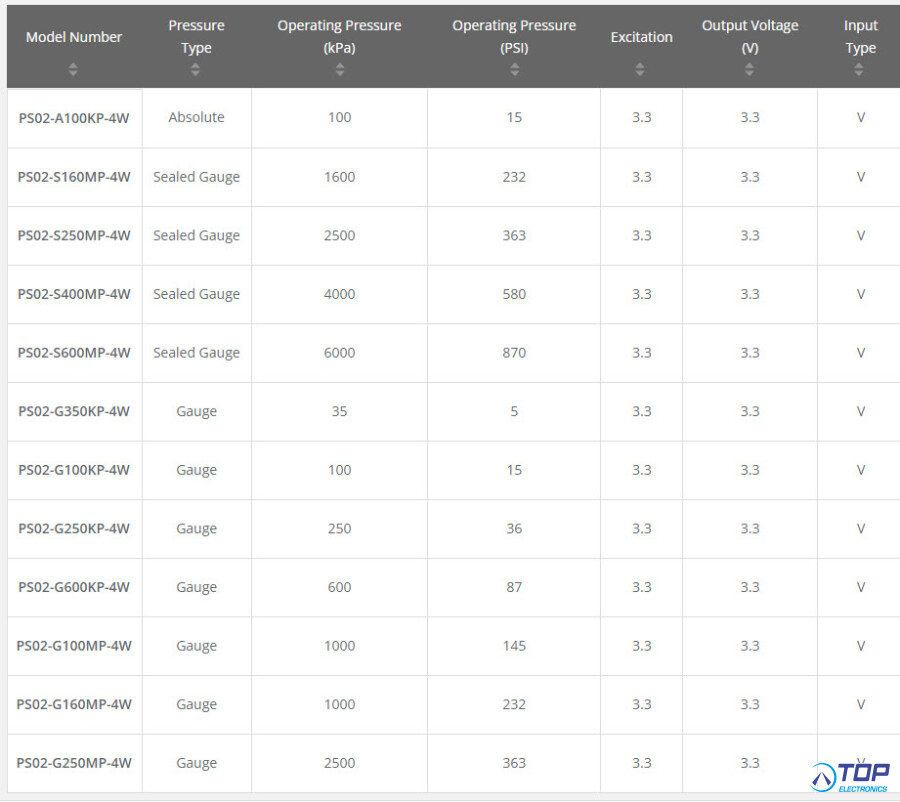

PS02 series - 19 mm, 3.3 V Excitation, 4 Wires, I²C Output, Pressure Sensor

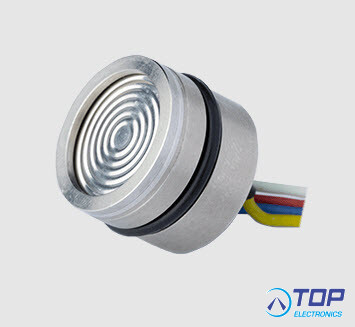

The PS02 series is a family of piezo-based pressure sensors offering absolute, gauge, and sealed gauge pressure types and an operating pressure range from 0 kPa to 2.5 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature digital I2C outputs, 3.3 V excitation ratings, and 4-wire terminations. With accuracy of ±0.5% and an operating temperature range from -40 to 105°C, the PS02 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.

Specifications:
Sensor Type: Pressure
Output Type: Digital I²C
Accuracy: ±0.5%
Maximum Pressure (MPa): 2.5
Termination: Wire Leads
Operating Temp. (°C): -40 ~ 105

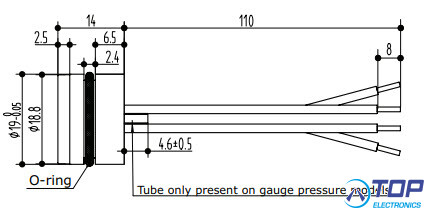

Dimensions LxWxH (mm): 19 x 19 x 14
Dimensions LxWxH (in): 0.75 x 0.75 x 0.55

-- CUI Devices product --
