Product specifications

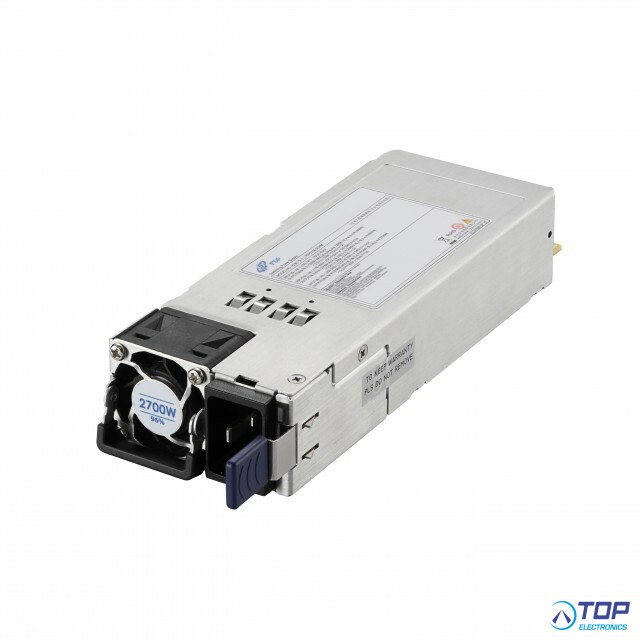

FSP2700-20HM is a redundant power supply module base on CRPS standard. The power supply comes to offer the total power capacity up to 2700 Watts, and provides PMBus features, which makes it to be able communicate with motherboard.
One of the most important features in this CRPS is referred to its Cold Redundancy feature, used to reduce the input power of idle systems. Cold redundancy accomplishes this by putting the power supply itself into a kind of idle state alongside the server. It is more efficient for fewer power supplies to be active while the others in the system remain in standby mode to achieve an outstanding efficiency advancement.
FSP2700-HM comes with universal input range of 90 to 264 Vac or HVDC Input range of 180 to 310Vdc . It supplies up to 2700W / +12VDC and +12Vsb outputs, housed in a compact 185 x 73.5 x 39 mm, 1U rack mountable chassis . It supports OCP, OTP, OVP and Short circuit protection on all outputs along with Resettable power shut down. The module is CB 62368-3 certified (UL, TUV, CE, CCC ), with operating temperature range of 0 to 55°C and operation altitude of 5000m above sea level.
The module meets 80 Plus Titanium Efficiency standard, achieving up to 96% outstanding efficiency at 50% load to reduce power loss, heat waste and improve system reliability, reaching MTBF (SR-332 Issue 2): 250,000 hours of continuous operation at 55°C, 75% output load. Finally, its equipped with PMBus 1.2 Communication Protocol Interface, for real-time monitoring and controlling the power supply status.
In addition, the power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
Features:
- Certified CB 62368-3
- Meet 80 Plus Titanium
- Meet CRPS standard
- Meet PMBus 1.2
- Support HVDC Input
- Design for 5,000 Meter above sea level
- High Reliability
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
General specifications:
- Dimension (L x W x H): 185 x 73.5 x 39 (mm) / 7.28 x 2.89 x 1.53 (inch)
- Efficiency: 80 Plus Titanium
- Hold-up time: Max. load at 12V >11ms
- Operating altitude: 5,000 meters above sea level
Environment
- Working temperature: 0°C to 55°C
- Storage temperature: -40°C to + 70°C
- Working humidity: 5% to 90% RH non-condensing
- Storage humidity: 5% to 95% RH non-condensing
- MTBF (SR-332 Issue 2): 250,000 hours of continuous operation at 55°C, 75% output load
- Applications: Storage System , Workstation, Industry Controller
Input specifications:
- Input voltage: 90-264Vac or 180Vdc-310Vdc
- Input frequency: 47-63Hz
