XT010003, 12.000MHz MP24G/30/50/-20+70/18pF

More information

Stock
Out of stock
Delivery time
if not in stock: 6 ~ 8 weeks
Part number

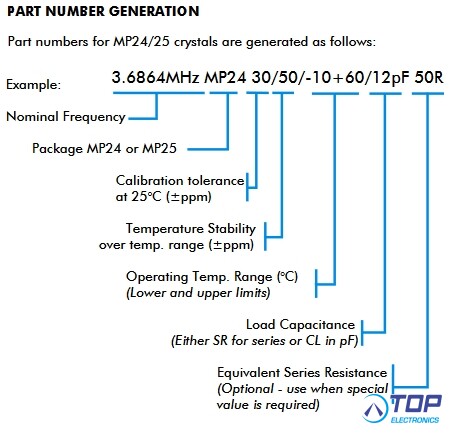

12.000MHz MP24G/30/50/-20+70/18pF
Manufacturer / supplier
Euroquartz
Datasheet
View datasheet
Contact us Technical support Quotation request

Product specifications

12.000MHz MP24G/30/50/-20+70/18pF
XT010003

Description:
MP24 crystals provide an ideal source of low frequency clock signals (from 3.5MHz) in a low-profile SMD package. The part is electrically and mechanically compatible with traditional industry SMD packages and may be used as a 'drop-in' replacement.
MP24 crystals are designed for top board assembly and one solder reflow process. Do not reflow this part with the can inverted.

Specifications:
Crystal Case: SMD, 11.4mm x 5mm
Frequency Nom: 12.000MHz
Calibration Tolerance: +/-30ppm
Temperature Stability over temp. range: +/-50ppm
Operating Temperature Min: -20°C
Operating Temperature Max: +70°C
Load Capacitance: 18pF

- Euroquartz Ltd product -
